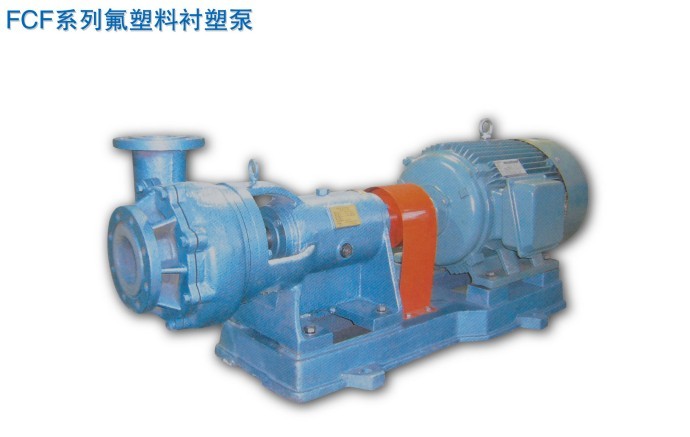

FCF fluoroplastic plastic-lined pump

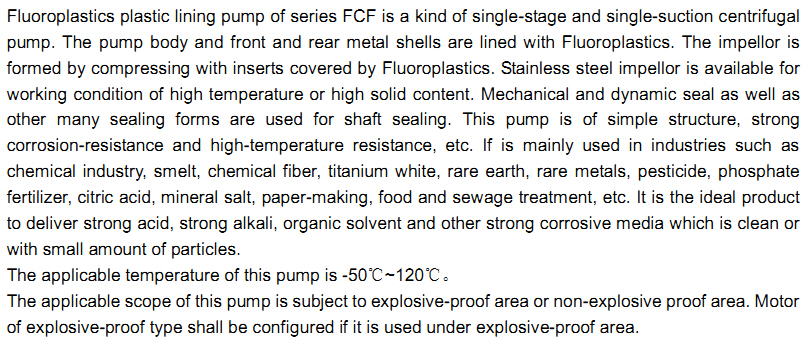

I. General introduction

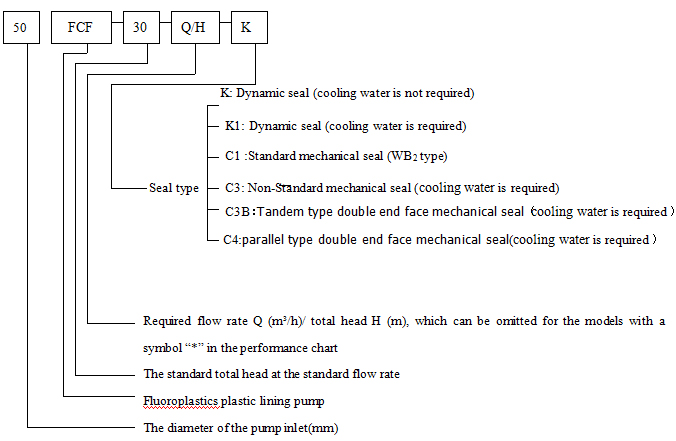

II. Demonstration of model

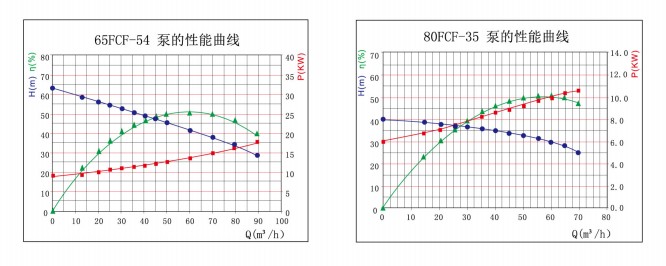

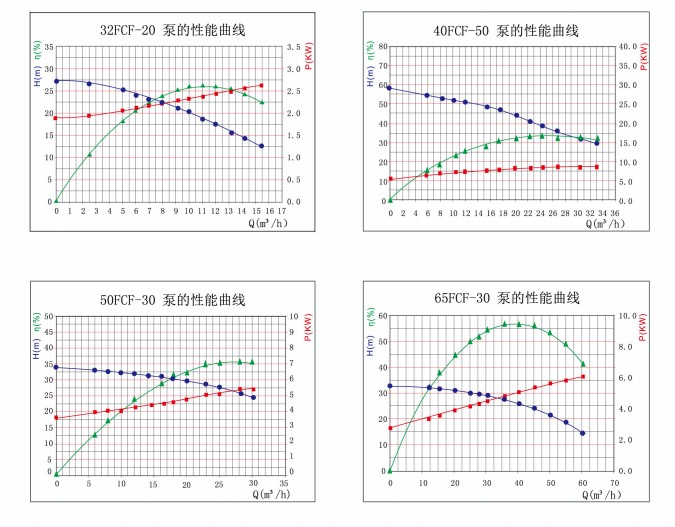

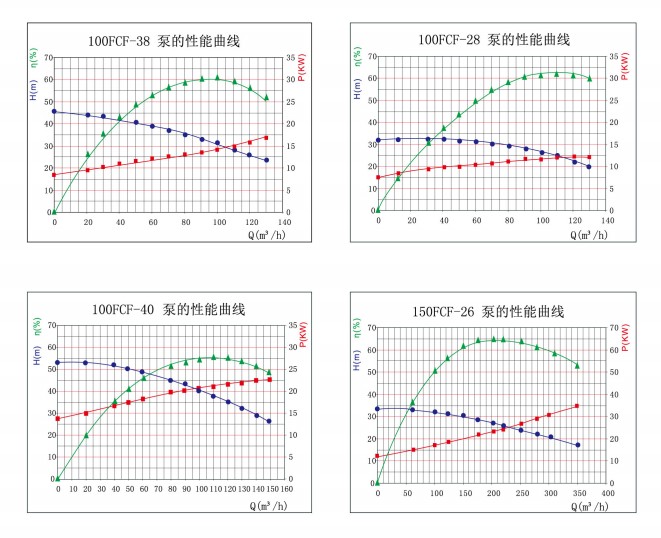

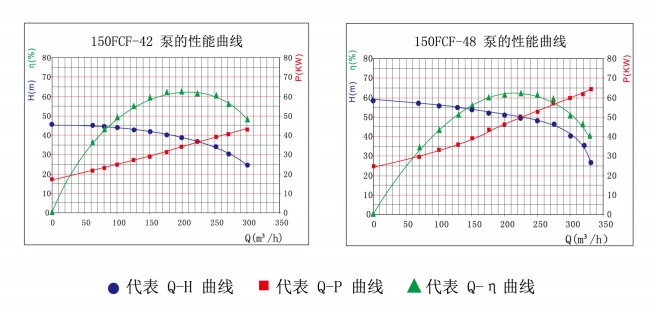

Performance curve Performance parameters Structure description Overall size and mounting size of the pump

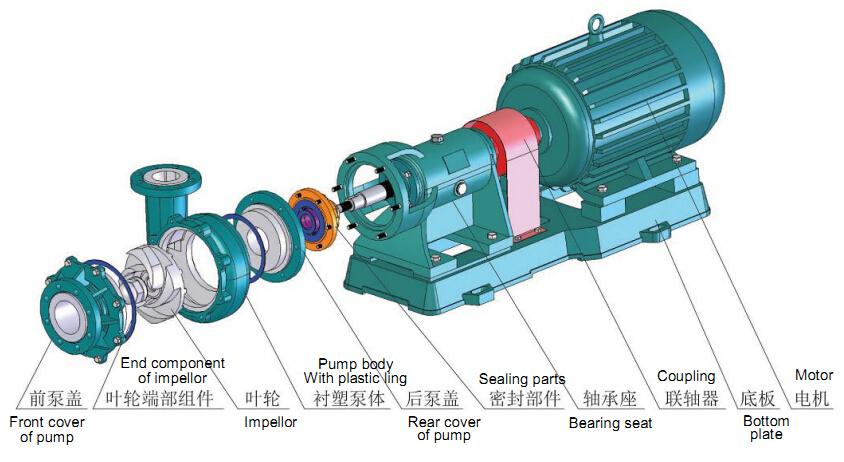

(I)Main parts

(II)Seal structure

Seal type: C1 type mechanical seal, C3, C3B, and C4 mechanical seal, K and K1 dynamic seal, etc.

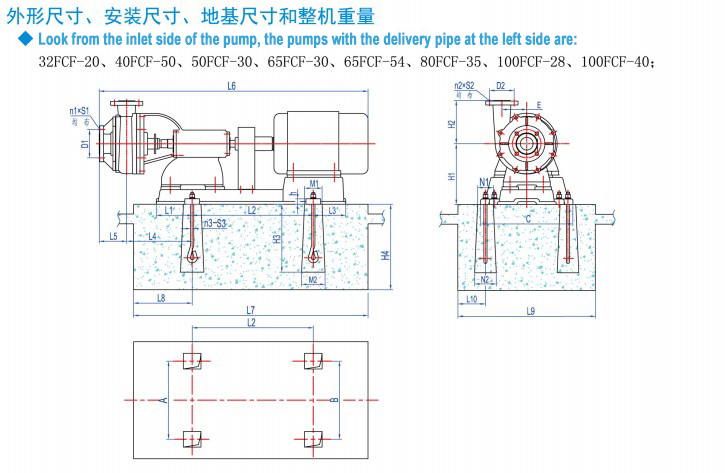

Model	Overall dimensions, installation dimension and foundation dimension (mm)																												Weight
Model	h	n3-S3	A	B	C	E	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1 × S1	D2	n2 × S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	( kg )
32 FCF -20	20	4-M16 ×300	260	260	300	81	165	145	97	336	97	205	112	814	100	4× Ф 18	85	4× Ф 14	90	120	80	110	380	700	182	500	120	450	90
40 FCF -50	25	4-M16 ×400	380	380	440	12 2.5	248	190	190	480	193	320	88	1200	110	4× M 16	100	4× M 16	90	120	80	110	480	1100	310	700	160	550	220
50 FCF -30	25	4-M16 ×300	320	320	370	96	208	192	160	400	160	269	128	1071	125	4× Ф 18	110	4× Ф 18	90	120	80	110	380	900	250	600	140	450	150
65 FCF -30	25	4-M16 ×300	320	320	370	96	208	190	160	400	160	270	128	1071	145	4× Ф 18	125	4× Ф 18	90	120	80	110	380	900	250	600	140	450	170
65 FCF -54	28	4-M16 ×400	330	420	470	12 6	310	220	184	620	216	335	140	1378	145	4× Ф 18	125	4× Ф 18	90	120	80	110	480	1200	300	700	140	550	330
80 FCF -35	30	4-M16 ×400	450	450	530	110	290	205	195	482	195	326	143	1282	160	8× Ф 18	145	4× Ф 18	90	120	80	110	480	1100	309	750	150	550	280
100 FCF -28	30	4-M16 ×400	450	450	530	10 9.5	290	240	195	482	195	336	153	1286	180	8× Ф 18	160	8× Ф 18	90	120	80	110	480	1100	309	750	150	550	400
100 FCF -40	30	4-M20 ×400	385	480	540	136	335	230	200	660	246	340	150	1546	180	8× Ф 18	160	8× Ф 18	120	150	100	130	470	1300	300	850	185	600	450

Mo del	Overall dimensions, installation dimension and foundation dimension (mm)																												Wei ght
Mo del	h	n3- S3	A	B	C	E	H1	H2	L1	L2	L3	L4	L5	L6	D1	n1 × S1	D2	n2 × S2	M1	M2	N1	N2	H3	L7	L8	L9	L10	H4	( kg )
100 FCF -38	35	4-M20 ×400	460	460	520	120	335	210	161	680	166	298	150	14 03	180	8× Ф 18	160	8× Ф 18	120	150	100	130	470	1200	260	800	170	600	380
150 FCF -42	45	4-M20 ×400	510	610	670	223	370	340	250	935	250	340	193	18 24	240	8× Ф 22	210	8× Ф 18	120	150	100	130	560	1600	320	950	170	700	890
150 FCF -26	40	4-M20 ×400	420	536	596	190	325	325	233	700	307	324	210	17 06	240	8× Ф 22	210	8× Ф 18	120	150	100	130	560	1450	350	900	182	700	650
150 FCF -48	45	4-M20 ×500	510	610	670	223	400	340	212	935	345	340	191	20 06	240	8× Ф 22	210	8× Ф 18	120	150	100	130	560	1700	320	950	170	700	11 80
